Hastelloy X

Overview

Hastelloy X, designated as alloy 2.4665, is a highly utilized nickel-based alloy renowned for its exceptional mechanical properties, resistance to corrosion, and biocompatibility. Comprising nickel (Ni), chromium (Cr), iron (Fe), and molybdenum (Mo), Hastelloy X falls within the category of nickel-chromium-iron-molybdenum (Ni-Cr-Fe-Mo) alloys. The parameter set offering and capability of Eplus3D for Ti64 performance are included in this document.

Powder compatibility

ASTM B435 / EN 2.4665

Brief introduction

Hastelloy X, also known as alloy 2.4665, is a high-temperature nickel-based alloy celebrated for its exceptional mechanical properties. Composed of nickel, chromium, iron, and molybdenum, Hastelloy X boasts high-temperature strength, oxidation resistance, and creep resistance. It finds widespread applications in demanding environments such as gas turbine engines and industrial furnaces, where its unique combination of properties is crucial. This alloy excels in scenarios requiring resistance to high temperatures and corrosion, making it an ideal choice for aerospace components, industrial heating elements, and other applications in aggressive chemical or high-temperature environments.

Powder characteristics

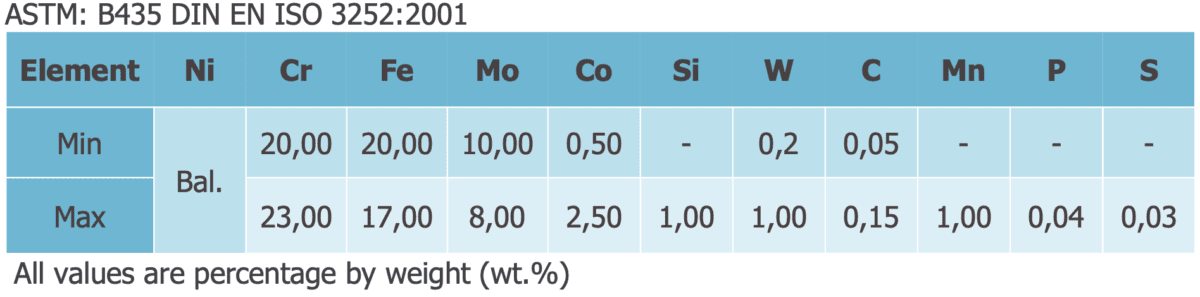

Chemical composition

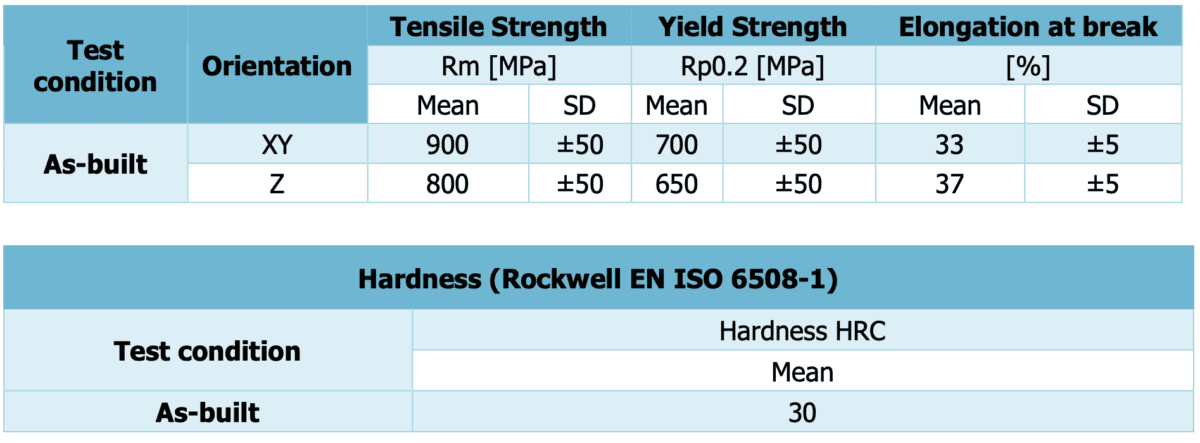

Mechanical properties

The test samples were printed in the EP-M300 & EP-M650 with the 50µm process.

DIN EN ISO 6892-1: 2020-06: A224

DIN 50125:2022-08: B6x30

Disclaimer

Recommendations are for guidance only and the suitability of the material for any application can only be confirmed upon getting to know the actual service conditions. Continuous development may cause changes in technical data without any prior notice. The current datasheet is only valid for EPlus3D materials.
All test data has been created with a well-maintained machine with well-maintained powder if machine is operated incorrectly or the feed material is not maintained performance of the material may not be seen.
Alterations to the parameter sets after they have been provided to the customer may also affect the overall performance of the material.
All tensile testing carried out to (DIN EN ISO 6892-1: 2020-06: A224, DIN 50125:2022-08: B6x30). Orientation Z defined as vertical perpendicular to the build plate. XY orientation defined as Parallel to the plate in the X or Y direction of the top view of the plate.
All Hardness measurements carried out to standard (ISO 6508-1:2016).
